Description – MGV 100

ONE ANALYSER FOR ALL NFPA99 GAS TESTING NEEDS

Finally, a gas analyzer that is especially and carefully designed for NFPA99 Medical Gas Verifiers!

The MGV100 is the world’s only All-In-One NFPA99 gas analyzer which provides MGVs with the ultimate combination of measurement accuracy, speed and convenience in an ergonomic, light and compact design.

The MGV100 is based on AG Instruments patented technology and the Technology Made to Measure™ concept. It was developed by bringing together some of the most experienced piped medical gas verifiers in the world with top gas analysis design engineers to offer you a product of the highest standards.

FEATURES

All NFPA99 Gas Testing in One Instrument

Measures O2, N2O, Water Vapor, CO2, CO, GHC, HHC, gas pressure and vacuum.
Optional SO2, NO and NO2 sensors as per US Pharmacopeia requirements.
Connects directly to any gas outlet with gas pressure up to 190 psi (13 Bar).
The most comprehensive, efficient and convenient piped medical gas testing solution in the world.

Reliable Technologies

Simultaneous measurement of all NFPA-99 gases
Most advanced sensing technologies.
Infrared Absorption water vapor measurement – much faster than current capacitive, electronic or chilled mirror sensors.
Infrared Absorption sensors for N2O, CO2 and Gaseous Hydrocarbons.
High stability Electrochemical sensor for O2 (Optional Paramagnetic sensor).
High sensitivity Electrochemical cell to measure CO down to 0.01ppm.
Photo Ionization Detector with ppb sensitivity to measure Halogenated Hydrocarbons.

Automatic Air Calibration

No air bottle is needed to perform air calibration.
Built-in filter provides dry and clean air for automatic air calibration when needed.
Precise temperature and pressure compensations for stable readings and reduced user gas calibration.

Simple and Reliable Gas Connections

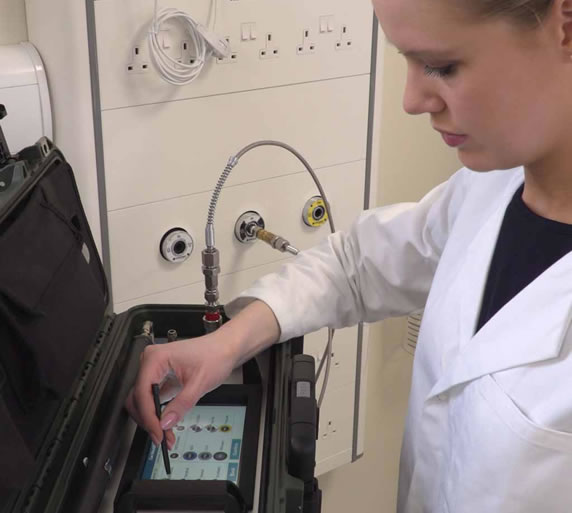

Direct connection to any gas outlet through a robust stainless-steel braided hose.
No need for pressure or flow regulators.
Hose is PTFE-lined and sealed to minimise hose purging time and ensures gas sample integrity.
Safe gas discharge of hazardous gas using one vent tube.
Simple operation, gas connections, handling as well as data recording provide optimal and streamlined operation.

Secure and Complete Data Recording and Reporting

Password protected access to ensure the integrity of the tests.

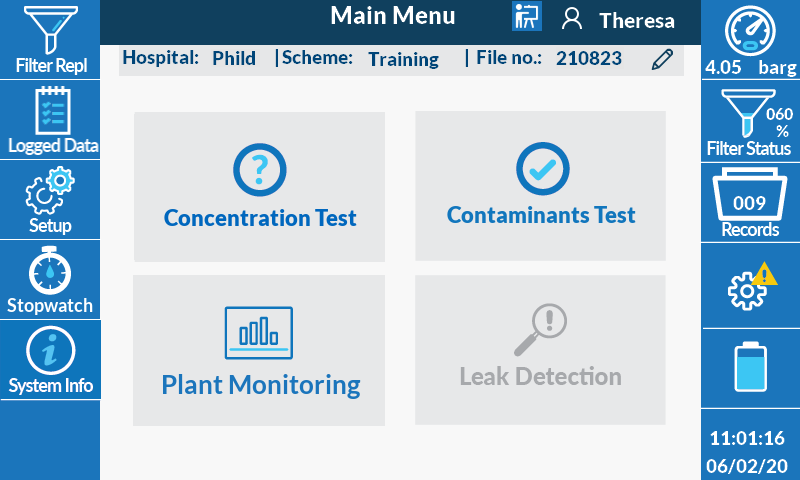

Test results are shown with out-of-range values highlighted according to NFPA99.
Gas test results, particulates, oil and odor results are securely stored with sample IDs and user notes.

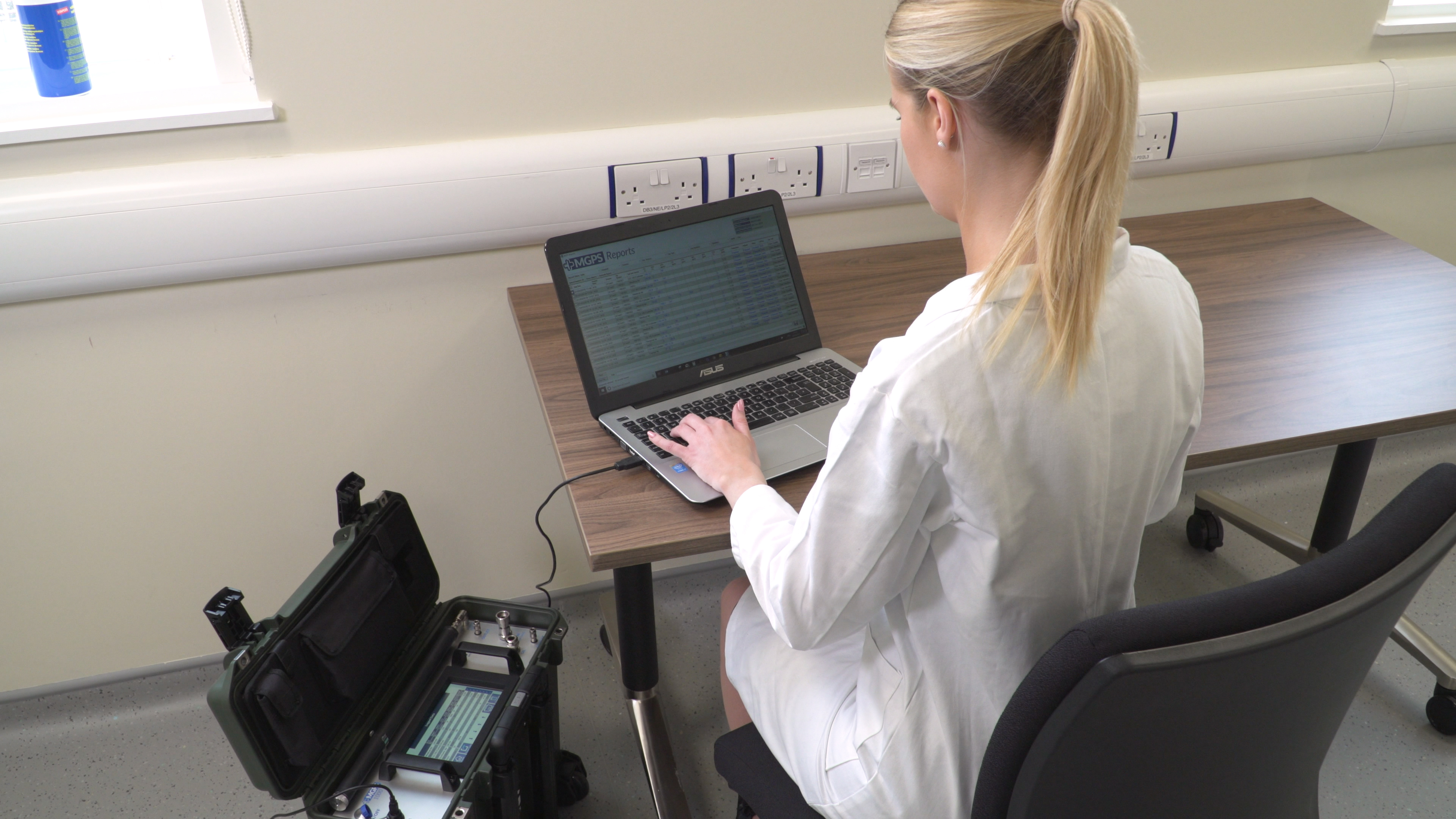

Data can be uploaded to the supplied MGVReports PC Software.
Data can also be exported to a USB memory stick.
The MGVReports Air plant monitoring option provides real-time logging of gas readings for up to an hour with both tabular and graphic presentation of the results.

Maximum Convenience

Very Compact and light: 11.5 lb/ 5.2kg.

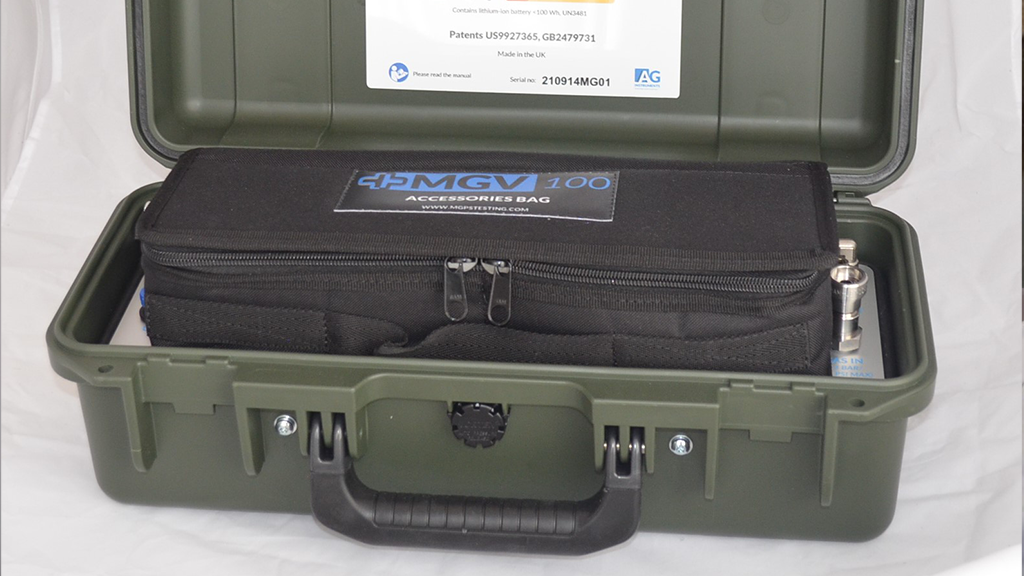

Accessories bag to accommodate everything you need and fits inside the instrument case.

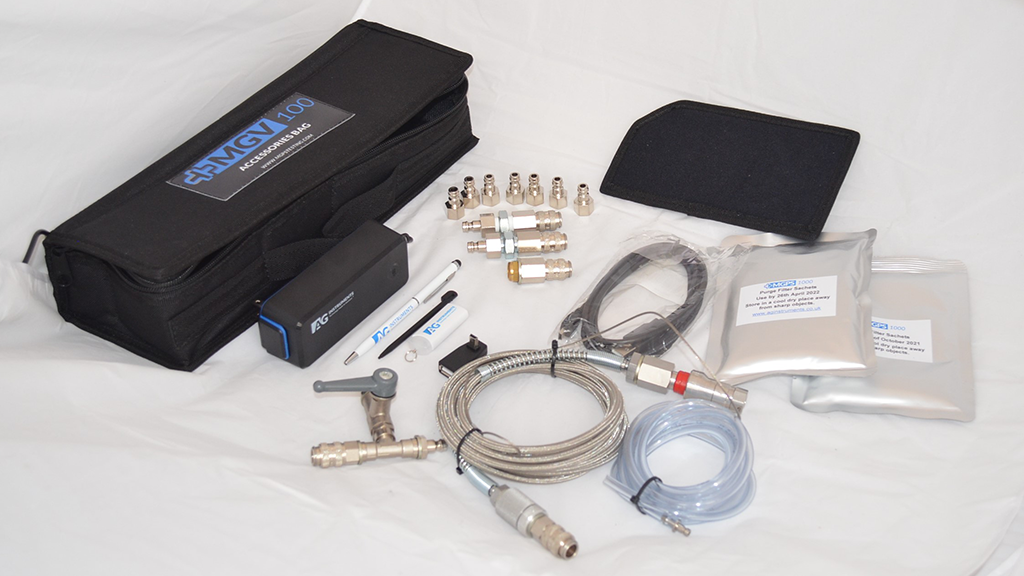

Accessories Include:
SS braided, PTFE lined, sealed sampling hose with inline sintered metal filter.
100 L/min and 10L/min restrictors

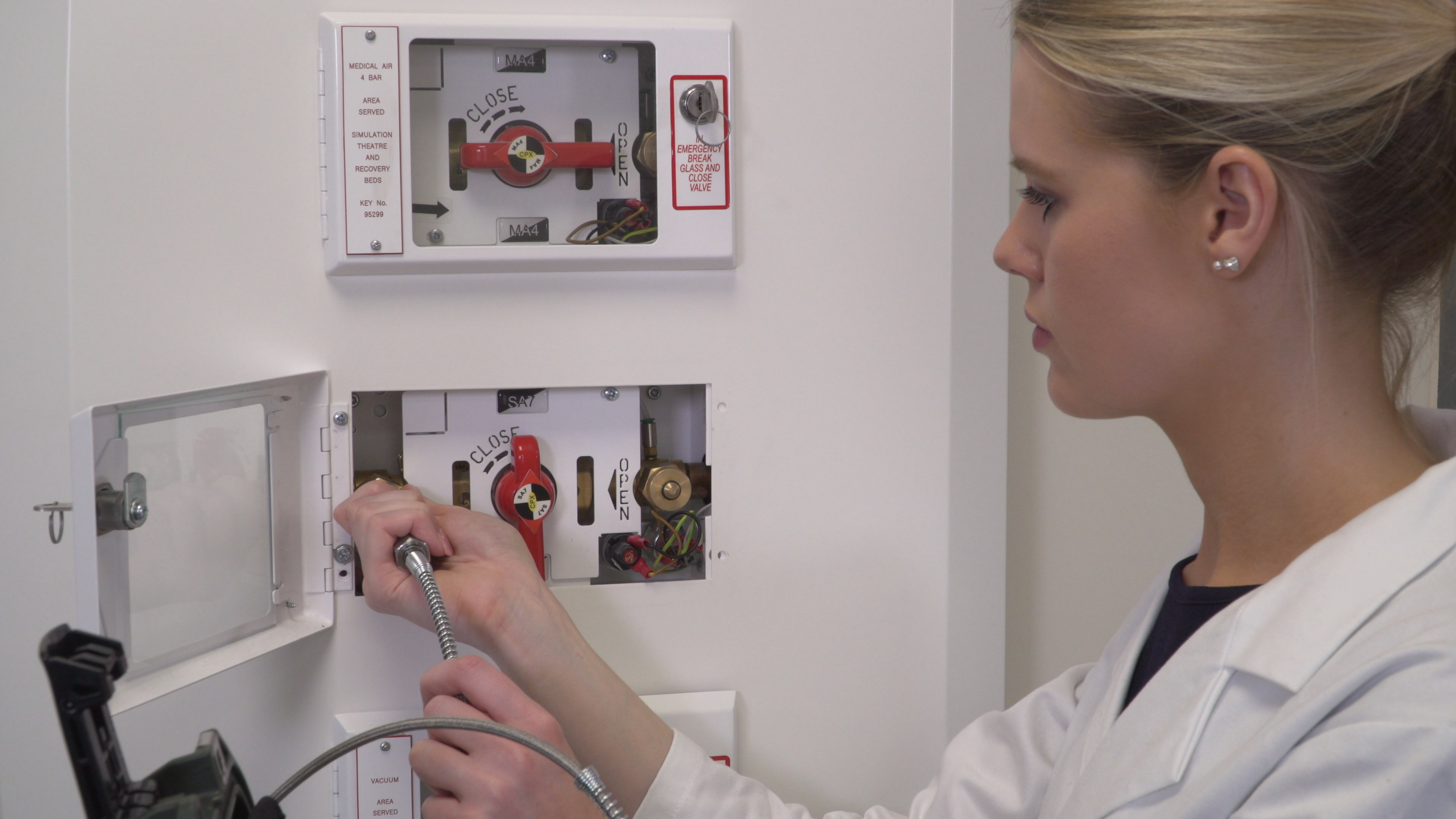

Purging T-piece for purging medical gas pipelines before or during measurement.
Vent tube for hazardous gases.
Threaded probes to connect your gas fittings to the sampling hose and purge T-piece.

External pouch to provide access to battery connection and to house a spare battery if more than 8 hours operation is needed as well as providing additional MG storage.
